Image Radial envelope Cut

Qianlix
In this proiect, I offer a quick tool (IP > 9.00) for extracting the radial distribution of 2-D matrix with no scale (not the multi-layers)
1.display the image with left and bottom axis
2.build the RoundCutB : Q Ways > Qround angle Distribution

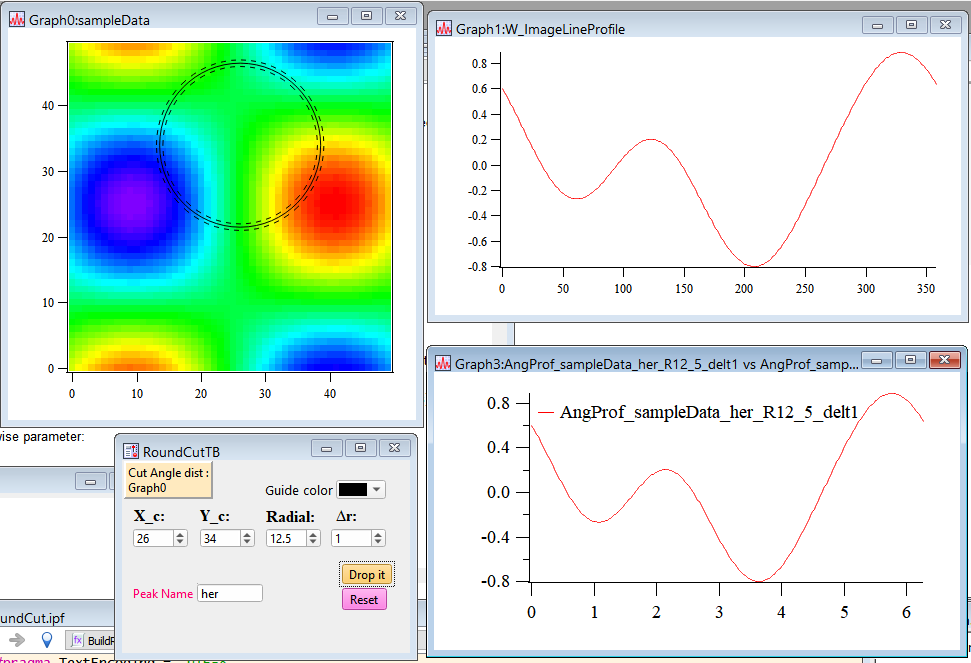

3.adjust the values of X_center. Y_center. Radial and radial interval. the Radial envelope will be generated automiatelly, see the W_ImageLineProfile
4.if you want copy the envelope to a standalone wave, input a name, and click the Drop it.
