I know you can insert Greek letters in Igor using the Symbol font, but it would be really awesome for all Greek letters (both uppercase and lowercase) to be available in Special-> Character. In a scientific field we use them a lot as a one-off for a word (ie D_alpha.)
I have a related question.
When setting the appropriate scale for a plot, the units appear for the axis label - in my case microseconds, and the mu is very pretty (matching font).
When I want to use units in a textbox or elsewhere I have been using:
\F'Symbol'm\F'Arial's
Note that other than symbols I am using the default font which seems to be Arial.

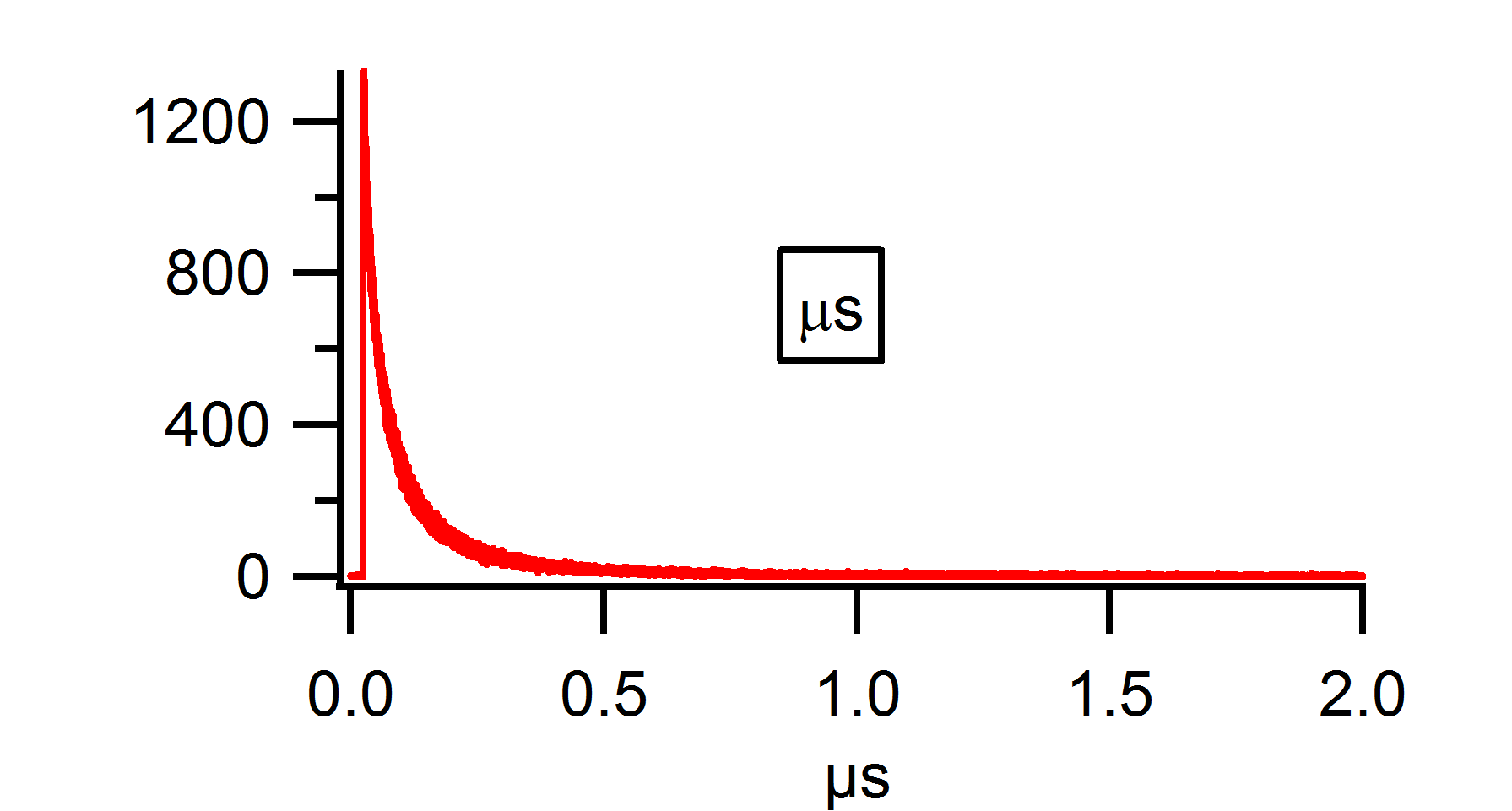

The trouble is that the mu is now ugly (not matching font - see attached).
How do I use the nice pretty mu with the matching font that Igor automatically generates?
mu is available in both standard Macintosh and Windows Roman (a.k.a. Western) fonts. Unlike most non-ASCII characters, it has the same code on both platforms (181 decimal, B5 hexadecimal). Execute this in Igor:
Printnum2char(0xB5)
Now copy what was printed in the history and paste into the textbox without using Symbol font. It will use whatever font is active at that point in the textbox.
This is how Igor generates the mu in an axis label. It uses whatever font is selected for the axis label. By default this is Geneva on Macintosh and Arial on Windows.
Apparently on your machine, Helvetica has a mu character and it is italicized. I guess your default font has a non-italicized mu. Moving the font specification to the end has exactly the same effect as removing it entirely. If you prefer the default font mu, but you like Helvetica for the rest, you can save the font at the start and then restore it just before the mu: \[0\F'Helvetica'The greek letter \]0µ
I know you can insert Greek letters in Igor using the Symbol font, but it would be really awesome for all Greek letters (both uppercase and lowercase) to be available in Special-> Character. In a scientific field we use them a lot as a one-off for a word (ie D_alpha.)

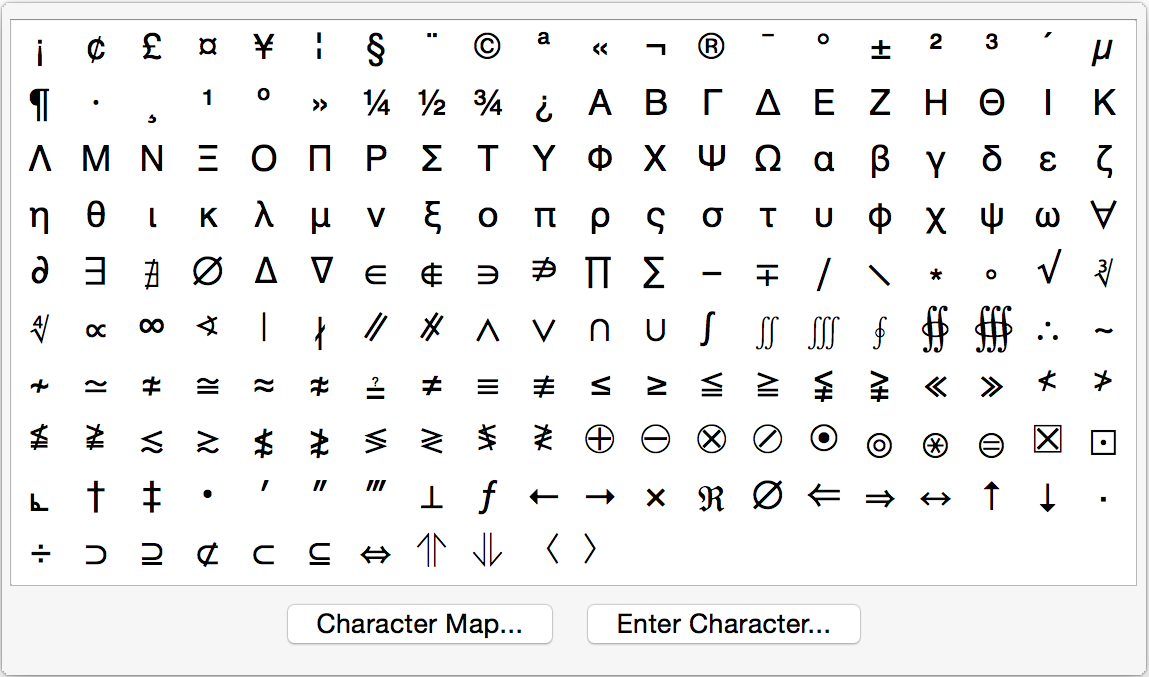

I've attached a picture of the character viewer you get in the Special menu in the Add Annotation dialog, or the Axis Label tab in the Modify Axis dialog from Igor 7 (from a Macintosh, I think it should be very much like this on Windows). Igor 7 is not quite in beta yet.
I am new using Igor.
Is there anyway I can insert the character: "\nabla" in the axis label or legend of a graph.

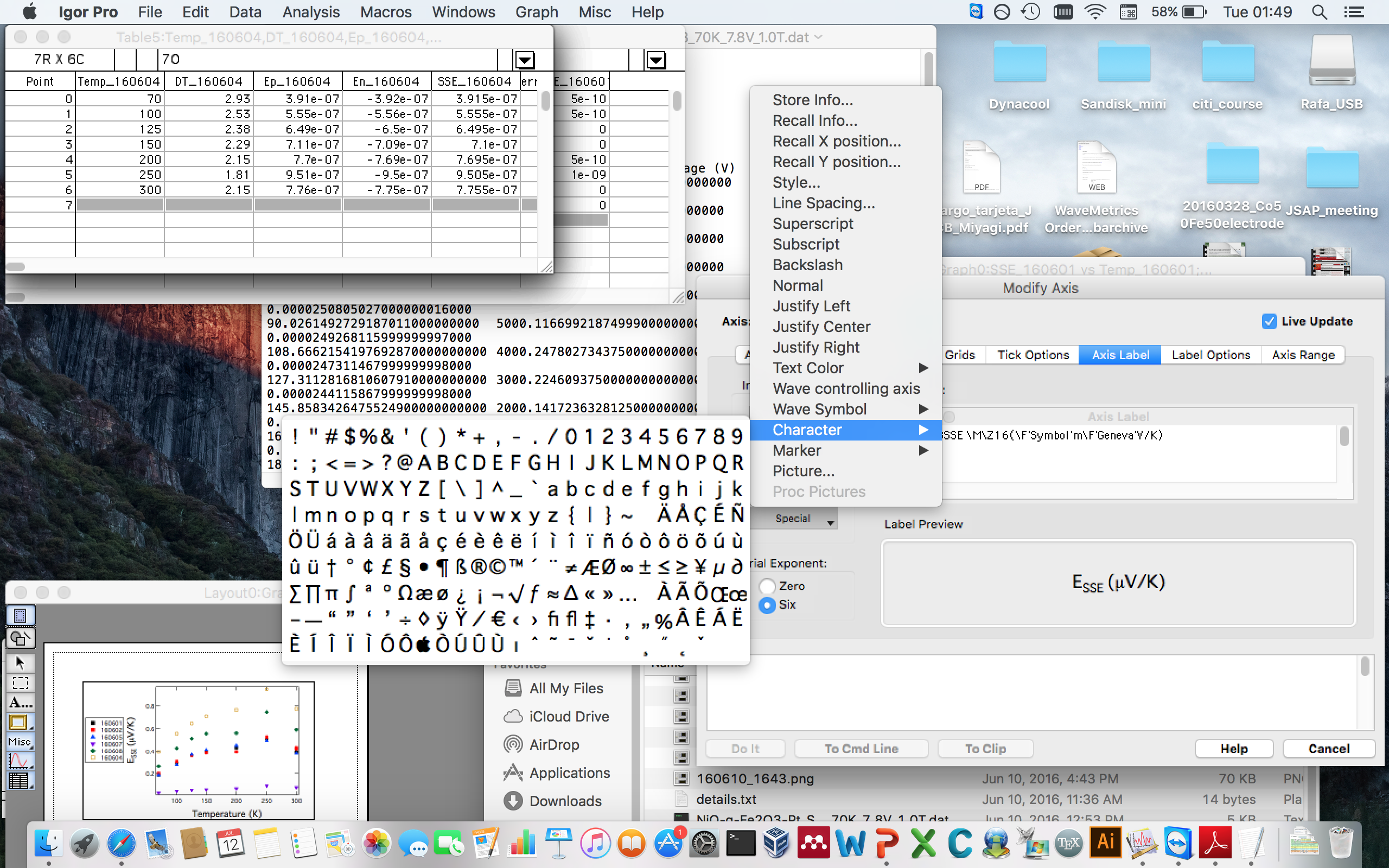

I checked special characters but I cannot find it (screen shot attaced)
Thanks,
In Igor7, if you know the Unicode code for a character, you can insert it in text by typing backslash-u-. For example:<br />
<pre><code class="language-igor">
Print "This is nabla: \u2207"
That will make all Greek letters available in all Igor text: both graph/graphics and programming text.
In the meantime, perhaps try this LaTeX package:
http://www.igorexchange.com/project/LaTeXPictures
--Jim Prouty
Software Engineer, WaveMetrics, Inc.
May 9, 2012 at 08:30 pm - Permalink
When setting the appropriate scale for a plot, the units appear for the axis label - in my case microseconds, and the mu is very pretty (matching font).
When I want to use units in a textbox or elsewhere I have been using:
Note that other than symbols I am using the default font which seems to be Arial.
The trouble is that the mu is now ugly (not matching font - see attached).
How do I use the nice pretty mu with the matching font that Igor automatically generates?
May 17, 2012 at 10:15 am - Permalink
Now copy what was printed in the history and paste into the textbox without using Symbol font. It will use whatever font is active at that point in the textbox.
This is how Igor generates the mu in an axis label. It uses whatever font is selected for the axis label. By default this is Geneva on Macintosh and Arial on Windows.
May 17, 2012 at 10:30 am - Permalink
May 17, 2012 at 11:18 am - Permalink
If you want the symbol to not be stylized, you need to include the font name *after* the string you are interested in. For example:
String title = "\F'Helvetica'" + "The greek letter " + mu
Label left,(title)
Seems to italicize the symbol for me, but the following works better, with the font name flag after everything else.
String title = "The greek letter " + mu + "\F'Helvetica'" // This line changed!
Label left,(title)
June 17, 2015 at 12:06 pm - Permalink
\[0\F'Helvetica'The greek letter \]0µ
John Weeks
WaveMetrics, Inc.
support@wavemetrics.com
June 18, 2015 at 09:22 am - Permalink
I've attached a picture of the character viewer you get in the Special menu in the Add Annotation dialog, or the Axis Label tab in the Modify Axis dialog from Igor 7 (from a Macintosh, I think it should be very much like this on Windows). Igor 7 is not quite in beta yet.
John Weeks
WaveMetrics, Inc.
support@wavemetrics.com
June 18, 2015 at 09:26 am - Permalink
Is there anyway I can insert the character: "\nabla" in the axis label or legend of a graph.
I checked special characters but I cannot find it (screen shot attaced)
Thanks,
July 11, 2016 at 09:52 am - Permalink
In Igor7, if you know the Unicode code for a character, you can insert it in text by typing backslash-u-
. For example:<br /> <pre><code class="language-igor"> Print "This is nabla: \u2207"
