phase from FFT of autocorrelation
mas1126
I am working some data sets which are similar to optical autocorrelations, and trying to use the Igor FFT function to extract the phase. The phase vs frequency plot alternates between which values 1pi apart.
This also occurs when I try to FFT a signal like:
make/d/o/n=1000 test= 2*sin(0.5*x)*exp(-abs(x-500)/100)
or
make/d/o/n=1000 test= 2*sin(0.5*x)*exp(-((x-500)/200)^2)
This doesn't happen in the FT of a simple sine though. Can anyone help me understand what is going on?
Thanks!
This question is confusing. Autocorrelations generally produce real-valued functions; as such, they should contain no phase information.
You should give more explicit details and examples of how your data sets are produced.
January 23, 2022 at 05:08 am - Permalink
In reply to This question is confusing… by s.r.chinn
The data is produced by a variation of the "interferometric autocorrelation" described here: https://en.wikipedia.org/wiki/Optical_autocorrelation . In my situation, there is a phase shift in the data caused by the relative orientation of the material that generates the signal. I am trying to resolve the relative phase differences between measurements by FFT of the signals.
I guess my question is more general though: Why do the FFTs of functions such as the following

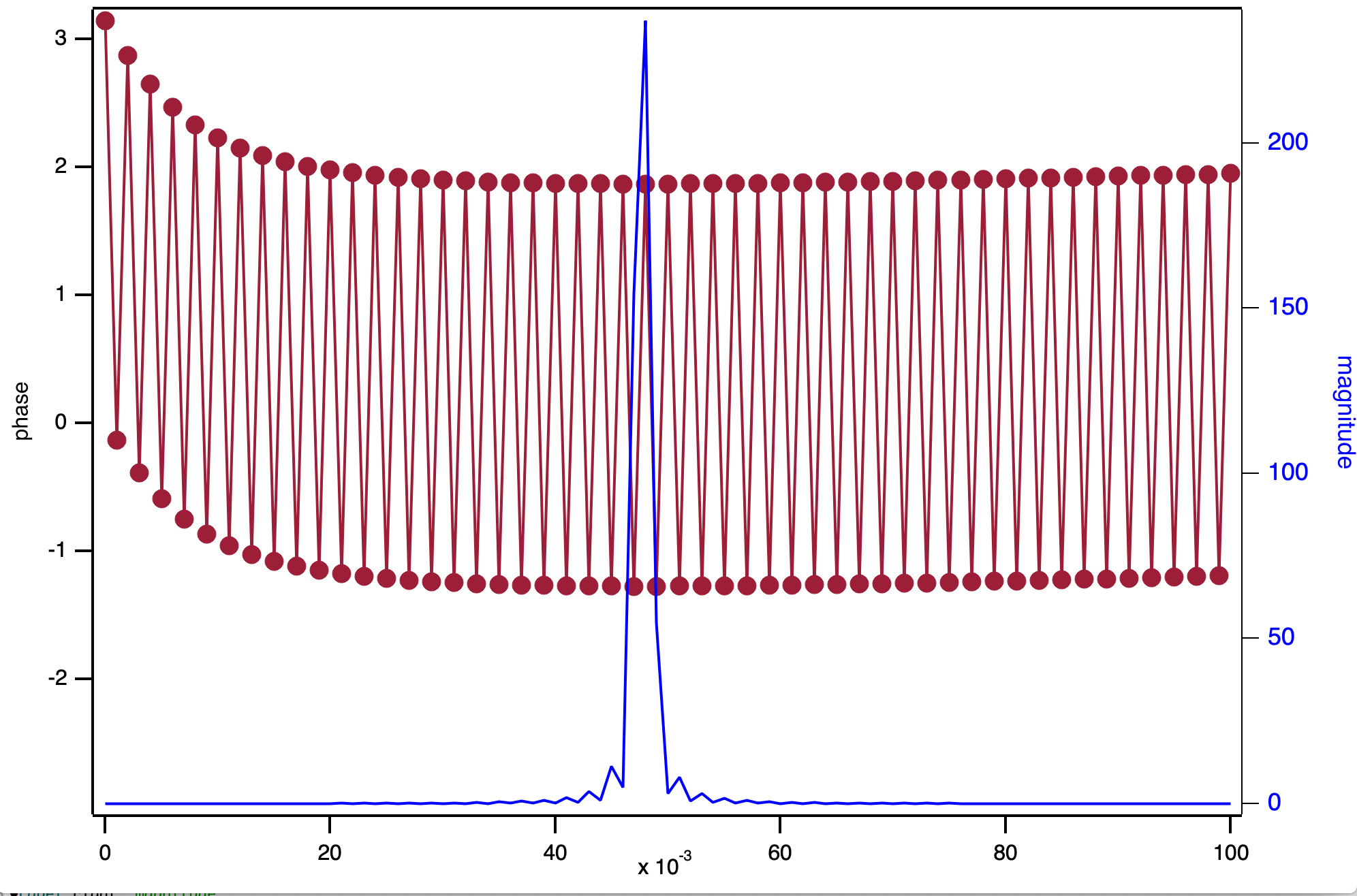

or even the FFT of a sine function with a window applied produce a phase which seems to alternate? Attached is a graph of the FFT result of a sine using a Bartlett window.
January 23, 2022 at 02:21 pm - Permalink
I interpret that as being the periodic sign change of a real-valued amplitude. Be careful of the centering, or initial conditions. Any temporal shift of a real sinusoid will alter the position of the sign-reversals (i.e. the apparent phase of the sinusoid). I would recommend reading carefully the Igor help files on how it handles Fourier Transforms, and finding a good text book on the general topic. Your projected interferometric auto-correlation produces waveforms considerably different from your test cases. It is also hard to see the purpose of applying an FFT to those symmetric, real-valued time-delay data to extract further phase information.
January 24, 2022 at 03:25 am - Permalink
