ellipsometric parameter calculation for bulk Si

Share icon

Hi there,

I'm trying to calculate the dielectric function for bulk Si. I have the data of psi2 and delta2 in radians but i seem to be doing something wrong.
Theoretically epi2=2nk, which i computed as epi3 but i'm not getting the same curve back as the one I plotted as epi2=imag(epi).

Something must be wrong here, if you could kindly enlighten.

make /o/c rho epi
rho = tan(psi2)*(cmplx(cos(delta2),-sin(delta2)))                     //ellipsometric parameter
epi = 0.883*(1+7.54863*((1-rho)^2/(1+rho)^2))                    //epi= complex dielectric function

make /o/n=128 epi1 epi2
epi1 = real(epi)                                                                    //real part of dielectric
epi2= imag(epi)                                                                   //imag part of dielectric

make /n=128 refra extin epi3
refra=(1/2*(epi1+(epi1^2+epi2^2)^1/2))^1/2
extin=(1/2*(-epi1+(epi1^2+epi2^2)^1/2))^1/2
epi3=2*refra*extin



On a side note, is it possible to make a complex wave greater than 128 points?
i know for a real wave i can use
make /n=512

but what about for a complex wave as
make /c=512
returns an error.
clanx wrote:
On a side note, is it possible to make a complex wave greater than 128 points?
i know for a real wave i can use
make /n=512

but what about for a complex wave as
make /c=512
returns an error.


This part is easy:
Make/O/C/N=512 rho

By the way, wrap your code with <igor> and </igor> (instead of <ccode>) to format the code correctly for Igor code. I've done that for your post.

The other problem with the calculations looks to require an understanding of the particular science or math which I apparently do not have :-)

--Jim Prouty
Software Engineer, WaveMetrics, Inc.

December 15, 2013 at 02:01 pm - Permalink

Hey Jim, thank you!

Apparently I found out the source of the problem is that I needed to bracket the factor half in my equation.

Regards

December 15, 2013 at 06:10 pm - Permalink

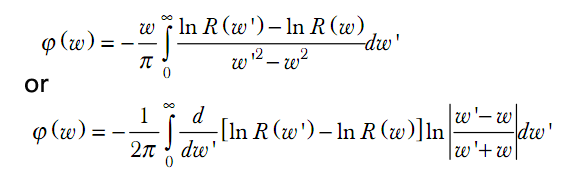

actually i have another question if anyone could help me with. how can I get phi as a function of omega in the attached function (kramers-kronig)? Initially i tried to use the built-in hilbert function in IGOR but the results don't seem to be very accurate.

December 15, 2013 at 07:10 pm - Permalink

Someone else might suggest an analytic method.

You could use the Integrate1D function to compute the integral numerically. To do that, you will need a definition of R(w).

John Weeks
WaveMetrics, Inc.
support@wavemetrics.com

December 16, 2013 at 09:01 am - Permalink

clanx wrote:
actually i have another question if anyone could help me with. how can I get phi as a function of omega in the attached function (kramers-kronig)? Initially i tried to use the built-in hilbert function in IGOR but the results don't seem to be very accurate.


If you have reason to believe that the Hilbert Transform returns inaccurate results please post an example.

As for the expressions you posted: they are typically NOT ideal for evaluation with Integrate1d unless you are interested in a range of w that is sufficiently far from zero.

A.G.
WaveMetrics, Inc.

December 16, 2013 at 10:16 am - Permalink
