Creating matrix of small graphs from several datasets with different attributes
arzensekd

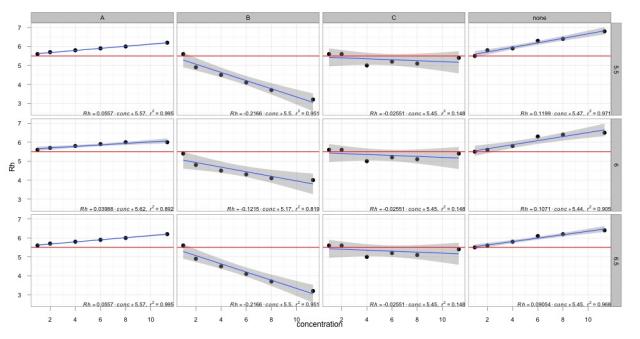

I have many data datasets assigned for different attributes and I want to plot them as separate small graphs. I attached data textile in which the data is and the sample of desired final graphs.
Does the Igor Pro has package for doing these sort of graphs? Is it built in Scatter Plot Matrix package for this purpose?
Thank you for all information and advices.
Best,
Dejan
John Weeks
WaveMetrics, Inc.
support@wavemetrics.com
December 20, 2011 at 10:32 am - Permalink
I started by loading your data into a numeric 2D wave using this command:
/K=1 tells LoadWave to treat all columns as numeric. As a result, all of the non-numeric columns are loaded as blanks.
Then I wrote this function and executed it:
Wave w2D // 2-D wave containing data
Display /W=(5,45,805,545) // Make master graph
String masterGraphName = WinName(0, 1)
Variable numPointsPerPlot = 6
Variable numPointsTotal = DimSize(w2D,0) - 1 // -1 because of header row
Variable firstDataRow = 1 // Skip header
Variable numPlotColumns = 4
Variable numPlotRows = trunc((numPointsTotal / numPointsPerPlot) / numPlotColumns)
Variable columnLabelHeight = .05 // Space allocated for column labels
Variable rowLabelHeight = .05 // Space allocated for row labels
Variable grout = 0.02
Variable plotWidth = (1 - grout*(numPlotColumns-1) - rowLabelHeight) / numPlotColumns
Variable plotHeight = (1 - grout*(numPlotRows-1) - columnLabelHeight) / numPlotRows
#if 0 // For debugging only
Printf "Plot width = %.03g, Plot height = %.03g\r", plotWidth, plotHeight
#endif
Variable frameStyle = 1 // Single-width frame
// Coordinates for subwindows
Variable left, top, right, bottom
// Create plots
Variable plotRow
for (plotRow=0; plotRow<numPlotRows; plotRow+=1)
Variable plotColumn
for (plotColumn=0; plotColumn<numPlotColumns; plotColumn+=1)
left = plotColumn * (plotWidth + grout)
right = left + plotWidth
top = columnLabelHeight + plotRow * (plotHeight + grout)
bottom = top + plotHeight
#if 0 // For debugging only
if (plotRow == 0)
Printf "Row %d: L=%.3g, T=%.3g, R=%.3g, B=%.3g\r", plotRow, left, top, right, bottom
endif
#endif
Variable xColumn = 0 // Column containing X values
Variable yColumn = 9 // Column containing Y values
Variable startDataRow = 1 + plotColumn*numPointsPerPlot + plotRow*numPointsPerPlot*numPlotColumns
Variable endDataRow = startDataRow + numPointsPerPlot -1
Display /HOST=$masterGraphName /W=(left, top, right, bottom) w2D[startDataRow,endDataRow][yColumn] vs w2D[startDataRow,endDataRow][xColumn]
ModifyGraph frameStyle=frameStyle
ModifyGraph mode=4,marker=19
SetActiveSubwindow $masterGraphName
endfor
endfor
End
The function creates a master graphs with subwindows for each of the plots.
I have attached the experiment which contains the code I wrote and the resulting graph.
I left room for the labels but did not write the code to create them. You would have to reload the data file as text (/K=2) to get the text to use as labels.
December 20, 2011 at 11:03 am - Permalink
@hrodstein this is exactly what I want. The reason for having my data in this arrangement and not in the way suitable for using Scatter Plot Matrix, is that some instruments give me data in this way. Then I want to quickly look in the resulting graphs and see if there are any possible outliers due to measurement error. The next step it will be to quickly erase outliers from the resulting graphs.
Can you help me with writing the code in which could simply choose (with cursor) the outlying points on the resulting graphs, erase them from wave and recreate the original input data in the same form that was transferred into the wave, but now without the rows of erased outlying points?
Thanks, this will help a lot due to short time schedule!
Best,
Dejan
December 21, 2011 at 12:14 am - Permalink
This entry in the WM Procedures Index help file may be useful:
--Jim Prouty
Software Engineer, WaveMetrics, Inc.
December 21, 2011 at 11:00 am - Permalink
This won't work in this case because the X and Y are sections of a 2D wave, something not supported by Delete Marquee Points.
Furthermore, I don't know if cursors will work here. Neither pcsr nor CsrInfo identify the point within the matrix - they just identify the point in the trace.
It seems as though you would have to use TraceInfo in combination with pcsr to identify the point within the matrix. That seems like a lot of work but a better way does not jump out at me.
I have attached the experiment I used to investigate this issue in case someone wants to play with it.
December 21, 2011 at 02:11 pm - Permalink
Thanks for attaching this experiment. I will play with this. I've also noticed that you posted snippet "Identify Point in Matrix Subrange". Is this also helpful for me?
I have one suggestion or maybe just the question how to do. You attached in previous post the custom code for my attached data file. Is it possible to identify part of 2D wave with attribute and not by number of rows (points) for each subset of 2D wave? Your custom code works great for 2D waves with fixed (same) number of subset points. But, sometimes each subset doesn't have same number of points (rows) and is easier to distinguish between them to mark them with attribute value (e.g., the value of pH for separate subset).
This approach is well known in statistical programming language R with using package ggplot2, where one can mark x and y column by column name or number and identify each subset with another column (I don't know how well are you informed with R).
Thanks for all answers!
Best regards,
Dejan
December 26, 2011 at 09:20 am - Permalink
Yes. The GetMatrixTraceIndices function allows you to identify an element of a 2D wave by putting a cursor on it. This would allow you to put a cursor on a point of a trace and then zap it (set it to NaN, also known as blank) as a way of removing outliers.
It is possible but it would take some additional programming and I have to get on to other things.
I would do this as follows:
This would require an intermediate level of Igor programming skill.
I'm not clear on your use of "subset". I'm not sure if you are referring to the collection of points for a particular subplot or the collection of points for a row of subplots.
Are there always four excipients (none, A, B, and C) or can that vary?
For a given row of subplots, is the number of data points per plot constant or can that vary?
Can the number of data points vary from one row of subplots to the next?
If you answer these questions and post one or two more files that illustrate the variability, I may be able to provide better guidance.
I'm very close to perfectly ignorant about R but it sounds like it is easier to do this kind of thing in R than in Igor.
December 26, 2011 at 02:34 pm - Permalink
It's long time from these post, but I have problems with sample data producing.
I attached the sample file where are attributes numerical values in columns pH, I, kappa_nm_1. From these columns I want to plot for example two attributes (e.g., pH vs I) and the points are for x axis the avgConc column with errors in sdConc and for y axis in avgD with add errors. As you can see, is for given set of pH and I different number of rows with same pH and I.
There is not always the same number of different attributes (now are eight different pH attributes and six different for I, but this could vary).
As I also want to plot fitted linear function for each subplot, which command I have to use in the procedure file and finally write fitting results in the separate wave?
Thanks for all answers,
Dejan
January 21, 2012 at 11:08 am - Permalink
