Cropped ternary diagram template

Thu, 01/31/2019 - 04:55 am

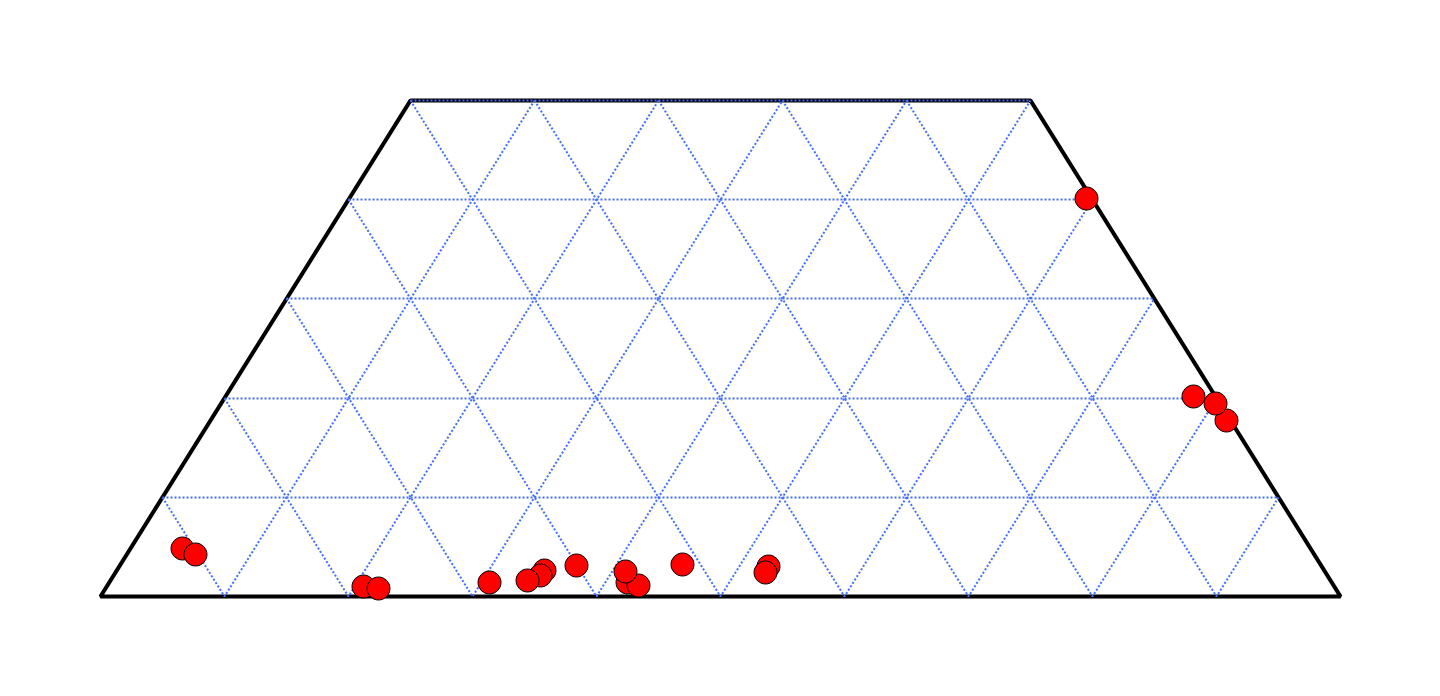

Snippet to generate a ternary diagram template. The ternary can be "full" or cropped, such that the top corner can be truncated at fractional values from 0.3 to 0.7 (in 0.1 increments). Cropping below or above that doesn't make much sense to me, but it could easily be added.

The function ConvMatrix2Ternary(M_Data) converts a 3-column data matrix in to a 2-column converted matrix that is compatible with ternary coordinates.

EDIT Jan 22nd 2019:

The initial code below contained a bug: The diagram coordinates and grid points need to be converted by multiplying the values of M_TernaryTemplate with cos(30*pi/180) and not, as initially posted, by dividing it. This has been fixed below. Sorry for any inconvenience.

function MakeTernaryTemplate([variable crop])

    // was crop specified? If not, default is the full ternary
    crop = ParamIsDefault(crop) ? 10 : Crop*10

    // aspect ratio of the ternary plot
    variable aspectRatio

    switch(crop)
        case 10 :
            Make/D/O/N=(37,4) M_TernaryTemplate = NaN
            M_TernaryTemplate[0][0]= {0,1,0.5,0}
            M_TernaryTemplate[0][1]= {0,0,1,0}
            M_TernaryTemplate[0][2]= {0.05,0.1,0.55,0.45,0.9,0.95,0.05,NaN,0.1,0.2,0.2,0.6,0.4,0.8,0.9,0.1,NaN,0.15,0.3,0.65,0.35,0.7,0.85,0.15,NaN,0.2,0.4,0.7,0.3,0.6,0.8,0.2,NaN,0.25,0.5,0.75,0.25}
            M_TernaryTemplate[0][3]= {0.1,0,0.9,0.9,0,0.1,0.1,NaN,0.2,0,0,0.8,0.8,0,0.2,0.2,NaN,0.3,0,0.7,0.7,0,0.3,0.3,NaN,0.4,0,0.6,0.6,0,0.4,0.4,NaN,0.5,0,0.5,0.5}
            aspectRatio = 1.25
            break

        case 3 :
            Make/D/O/N=(44,4) M_TernaryTemplate = NaN
            M_TernaryTemplate[0][0]= {0,1,0.85,0.15,0}
            M_TernaryTemplate[0][1]= {0,0,0.3,0.3,0}
            M_TernaryTemplate[0][2]= {0.05,0.95,NaN,0.1,0.9,NaN,0.15,0.85,NaN,0.05,0.1,0.25,NaN,0.1,0.2,0.35,NaN,0.15,0.3,0.45,NaN,0.25,0.4,0.55,NaN,0.35,0.5,0.65,NaN,0.45,0.6,0.75,NaN,0.55,0.7,0.85,NaN,0.65,0.8,0.9,NaN,0.75,0.9,0.95}
            M_TernaryTemplate[0][3]= {0.1,0.1,NaN,0.2,0.2,NaN,0.3,0.3,NaN,0.1,0,0.3,NaN,0.2,0,0.3,NaN,0.3,0,0.3,NaN,0.3,0,0.3,NaN,0.3,0,0.3,NaN,0.3,0,0.3,NaN,0.3,0,0.3,NaN,0.3,0,0.2,NaN,0.3,0,0.1}
            aspectRatio = 3
            break

        case 4 :
            Make/D/O/N=(47,4) M_TernaryTemplate = NaN
            M_TernaryTemplate[0][0]= {0,1,0.8,0.2,0}
            M_TernaryTemplate[0][1]= {0,0,0.4,0.4,0}
            M_TernaryTemplate[0][2]= {0.05,0.95,NaN,0.1,0.9,NaN,0.15,0.85,NaN,0.2,0.8,NaN,0.05,0.1,0.3,NaN,0.1,0.2,0.4,NaN,0.15,0.3,0.5,NaN,0.2,0.4,0.6,NaN,0.3,0.5,0.7,NaN,0.4,0.6,0.8,NaN,0.5,0.7,0.85,NaN,0.6,0.8,0.9,NaN,0.7,0.9,0.95}
            M_TernaryTemplate[0][3]= {0.1,0.1,NaN,0.2,0.2,NaN,0.3,0.3,NaN,0.4,0.4,NaN,0.1,0,0.4,NaN,0.2,0,0.4,NaN,0.3,0,0.4,NaN,0.4,0,0.4,NaN,0.4,0,0.4,NaN,0.4,0,0.4,NaN,0.4,0,0.3,NaN,0.4,0,0.2,NaN,0.4,0,0.1}
            aspectRatio = 2.85
            break

        case 5 :
            Make/D/O/N=(50,4) M_TernaryTemplate = NaN
            M_TernaryTemplate[0][0]= {0,1,0.75,0.25,0}
            M_TernaryTemplate[0][1]= {0,0,0.5,0.5,0}
            M_TernaryTemplate[0][2]= {0.05,0.95,NaN,0.1,0.9,NaN,0.15,0.85,NaN,0.2,0.8,NaN,0.25,0.75,NaN,0.05,0.1,0.35,NaN,0.1,0.2,0.45,NaN,0.15,0.3,0.55,NaN,0.2,0.4,0.65,NaN,0.25,0.5,0.75,NaN,0.35,0.6,0.8,NaN,0.45,0.7,0.85,NaN}
            M_TernaryTemplate[43][2]= {0.55,0.8,0.9,NaN,0.65,0.9,0.95}
            M_TernaryTemplate[0][3]= {0.1,0.1,NaN,0.2,0.2,NaN,0.3,0.3,NaN,0.4,0.4,NaN,0.5,0.5,NaN,0.1,0,0.5,NaN,0.2,0,0.5,NaN,0.3,0,0.5,NaN,0.4,0,0.5,NaN,0.5,0,0.5,NaN,0.5,0,0.4,NaN,0.5,0,0.3,NaN,0.5,0,0.2,NaN,0.5,0,0.1}
            aspectRatio = 2.5
            break

        case 6 :
            Make/D/O/N=(53,4) M_TernaryTemplate = NaN
            M_TernaryTemplate[0][0]= {0,1,0.7,0.3,0}
            M_TernaryTemplate[0][1]= {0,0,0.6,0.6,0}
            M_TernaryTemplate[0][2]= {0.05,0.95,NaN,0.1,0.9,NaN,0.15,0.85,NaN,0.2,0.8,NaN,0.25,0.75,NaN,0.3,0.7,NaN,0.05,0.1,0.4,NaN,0.1,0.2,0.5,NaN,0.15,0.3,0.6,NaN,0.2,0.4,0.7,NaN,0.25,0.5,0.75,NaN,0.3,0.6,0.8,NaN,0.4,0.7,0.85}
            M_TernaryTemplate[45][2]= {NaN,0.5,0.8,0.9,NaN,0.6,0.9,0.95}
            M_TernaryTemplate[0][3]= {0.1,0.1,NaN,0.2,0.2,NaN,0.3,0.3,NaN,0.4,0.4,NaN,0.5,0.5,NaN,0.6,0.6,NaN,0.1,0,0.6,NaN,0.2,0,0.6,NaN,0.3,0,0.6,NaN,0.4,0,0.6,NaN,0.5,0,0.5,NaN,0.6,0,0.4,NaN,0.6,0,0.3,NaN,0.6,0,0.2,NaN,0.6,0,0.1}
            aspectRatio = 2
            break

        case 7 :
            Make/D/O/N=(53,4) M_TernaryTemplate = NaN
            M_TernaryTemplate[0][0]= {0,1,0.65,0.35,0}
            M_TernaryTemplate[0][1]= {0,0,0.7,0.7,0}
            M_TernaryTemplate[0][2]= {0.05,0.95,NaN,0.1,0.9,NaN,0.15,0.85,NaN,0.2,0.8,NaN,0.25,0.75,NaN,0.3,0.7,NaN,0.05,0.1,0.45,NaN,0.1,0.2,0.55,NaN,0.15,0.3,0.65,NaN,0.2,0.4,0.7,NaN,0.25,0.5,0.75,NaN,0.3,0.6,0.8,NaN,0.35,0.7}
            M_TernaryTemplate[44][2]= {0.85,NaN,0.45,0.8,0.9,NaN,0.55,0.9,0.95}
            M_TernaryTemplate[0][3]= {0.1,0.1,NaN,0.2,0.2,NaN,0.3,0.3,NaN,0.4,0.4,NaN,0.5,0.5,NaN,0.6,0.6,NaN,0.1,0,0.7,NaN,0.2,0,0.7,NaN,0.3,0,0.7,NaN,0.4,0,0.6,NaN,0.5,0,0.5,NaN,0.6,0,0.4,NaN,0.7,0,0.3,NaN,0.7,0,0.2,NaN,0.7,0,0.1}
            aspectRatio = 1.75
            break

        default:
            DoAlert 0, "Sorry, that crop-value is not supported!"
            return -1
    endswitch

    // convert Y (columns 1 and 3) to ternary coordinates
    variable factor = cos(30*pi/180)
    M_ternaryTemplate[][1] *= factor
    M_ternaryTemplate[][3] *= factor

    // display ternary if it doesn't exist
    DoWindow/F Ternary
    if(!V_flag)
        Display/N=Ternary M_TernaryTemplate[][1] vs M_TernaryTemplate[][0]
        ModifyGraph noLabel=2,axThick=0, rgb=(0,0,0), lsize(M_TernaryTemplate)=2
        ModifyGraph margin=50

        // append grid
        AppendToGraph M_TernaryTemplate[][3] vs M_TernaryTemplate[][2]
        ModifyGraph rgb(M_TernaryTemplate#1)=(16385,28398,65535), lstyle(M_TernaryTemplate#1)=1
    endif

    ModifyGraph width={Aspect,aspectRatio}

    return 1
end


function ConvMatrix2Ternary(M_Data)
    // M_Data needs to be organised: left [][0], right [][1], top[][2] of the ternary
    wave M_Data

    // Make temp wave: normalise in case it isn't and/or turn to fractions
    Duplicate/O/FREE M_Data, M_temp
    MatrixOP/FREE W_Sum = sumRows(M_temp)
    M_temp = M_temp[p][q] / W_Sum[p]

    // make output wave M_XY
    Make/D/O/N=(DimSize(M_Data,0), 2) M_XY

    // Do transformation to ternary coordinates;
    // Then use: AppendToGraph M_xy[][1] vs M_xy[][0] to add to ternary template
    M_XY[][0] =      0.5 * M_temp[p][2] + M_temp[p][1]
    M_XY[][1] =  M_temp[p][2] * cos(30 * (pi/180))
end

Usage:

// make some data
Make/D/O/N=(19,3) M_Data
M_Data[0][0]= {62.9,51.5,60.1,63.5,44.6,56.8,43.3,74.1,0.3,1.2,52.4,66.1,63.3,54.1,73.3,0.3,0.3,89.7,88.5}
M_Data[0][1]= {34.5,45.3,36.8,34.4,52.4,41.8,50.2,19.6,69.8,54.1,40.1,29.8,32.9,39.4,20.9,65.6,45.2,4.1,5.4}
M_Data[0][2]= {2.6,3.2,3.1,2.1,3,1.4,2.3,1,15.1,14,1,1.4,1.6,2.4,0.8,15.9,30.5,4.8,4.2}

// convert data
ConvMatrix2Ternary(M_Data)

// generate template
MakeTernaryTemplate(crop=0.5)

// append converted data
AppendToGraph M_xy[][1] vs M_xy[][0]

CroppedTernaryTemplate.ipf (5.99 KB)
